Ubushinwa OEM ifite ubwiza bwo hejuru bwa 140MM 160MM 168MM 200MM Stainless Steel UPVC Big Size Ball Valve yo gukora umushinga DN200 n'abakora

Ubwiza bwo hejuru bwa OEM 140MM 160MM 168MM 200MM Ibyuma Bidakora UPVC Binini Binini Bikoreshwa mu Mushinga DN200

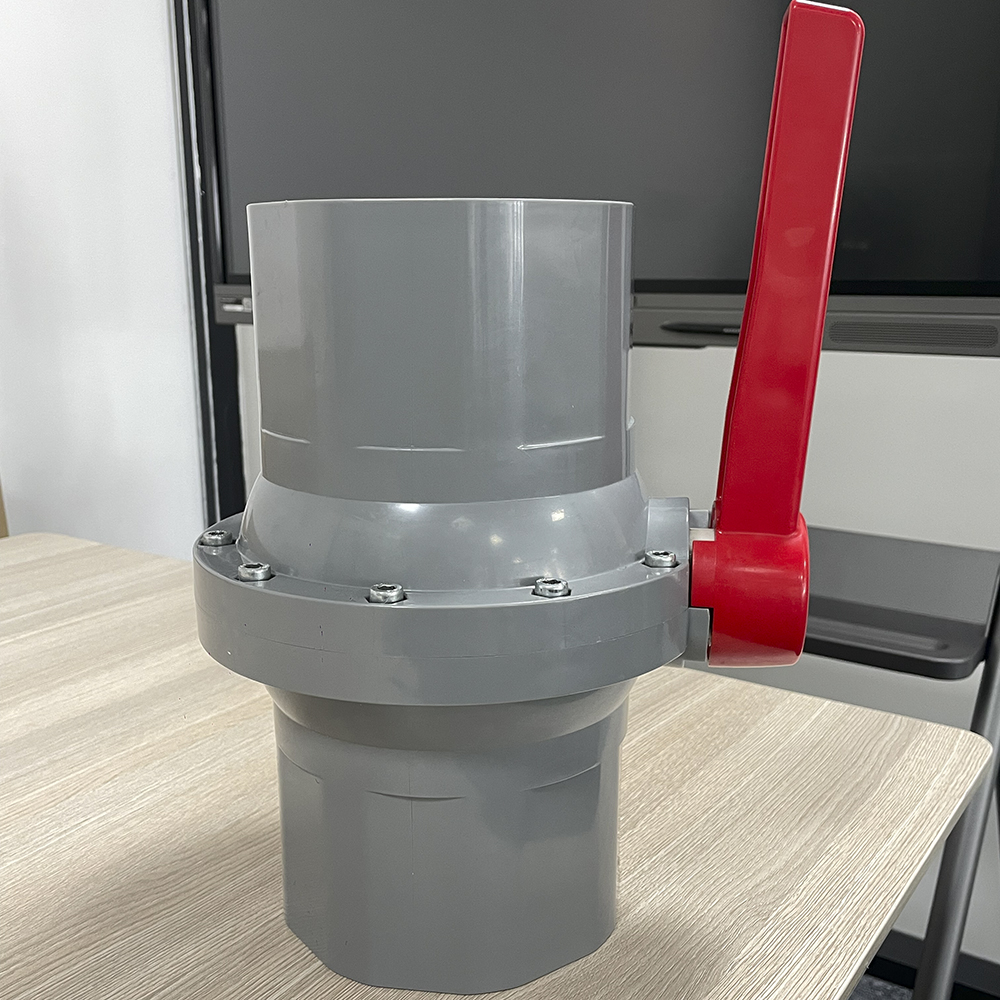

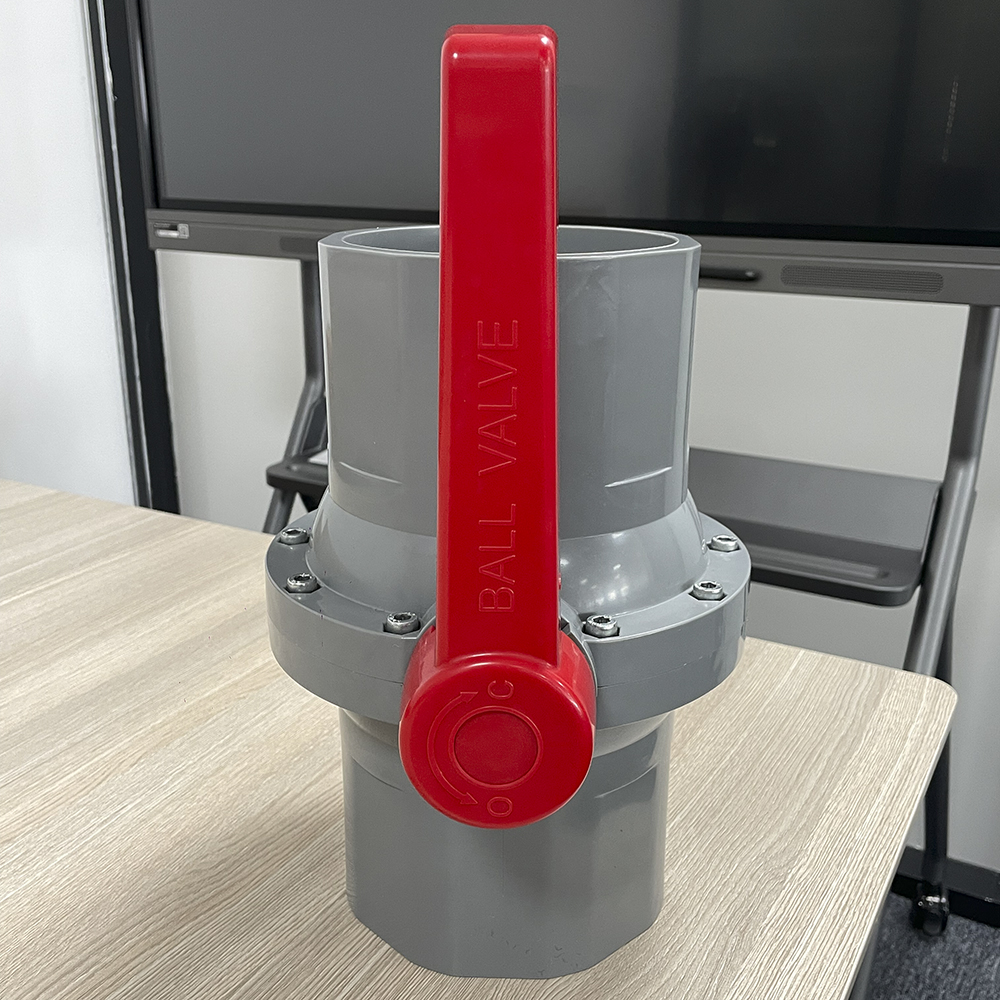

Ishusho y'Umupira w'Amapine ya UPVC ifite Ireme ryo hejuru rya 140MM 160MM 168MM 200MM Ifite Icyuma Kidafunze cya UPVC gifite Ingano Nyinshi y'Umushinga wa DN200

Ibisobanuro bigufi:

Valve y'umupira
1. Amabara yoroshye n'igishushanyo mbonera gito
2. Igikorwa cyo gusohora amazi;
3. Ingufu zoroheje n'iz'ubumwe byoroshya gushyiraho
4. Ubukungu kuko amafaranga y'ubwikorezi ahendutse kandi akazi kagakomeza igihe kirekire
5. Igenzura ry'imashini n'ubuziranenge bwo hejuru
6. Irinda ibidukikije, ntabwo ihumanya
7. Kurwanya ikirere n'ubushyuhe n'ubudahangarwa bwiza bw'imiti
8. Ikoreshwa cyane mu bwubatsi, mu kuhira, mu nganda no mu bwogero
9. Itumizwa rito ryemewe
10. Igishushanyo mbonera n'ikirango by'umukiriya birahari

Ingano:140MM 160MM 168MM 200MM

Iherezo ry'Ihuriro:ASTM BS DIN ISO JIS

Igitutu cy'akazi:PN16

Ohereza imeri kuri twe

Ibisobanuro birambuye ku gicuruzwa

Ibibazo Bikunze Kubazwa

Ibirango by'ibicuruzwa

Inkuru n'ikarita ifatika

singleproducimg

Ibikoresho bigize

ibisobanuro by'ibikoresho

OYA.	Igice	Ibikoresho	UMUBARE
1	UMUBIRI	UPVC, CPVC	1
2	Impeta ya O-STEM	EPDM,FPM (NBR)	1
3	STEM	UPVC, CPVC	1
4	UMUPIRA	UPVC, CPVC	1
5	IKIMENYETSO CY'ICARO	TPE, TPVC, TPO	2
6	UMUPFUNDIKIZO	PVC, ABS	1
7	UMUKONO	PVC, ABS	1
8	AKARUFURU	SS304, ICYUMA	1

Imbonerahamwe yo kugereranya ibipimo by'ingano y'icyitegererezo

DIMENSION												Ishami
ICYITONDERWA	DN		15	20	25	32	40	50	65	80	100
	INGANO		1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	Inches
	thd./in	NPT	14	14	11.5	11.5	11.5	11.5	8	8	8	mm
	thd./in	BSPT	14	14	11	11	11	11	11	11	11	mm
	JIS	I	20	20	24	26	30	31	45	48	53	mm
		d1	22.3	26.3	32.33	38.43	48.46	60.56	76.6	89.6	114.7	mm
		d2	21.7	25.7	31.67	37.57	47.54	59.44	75.87	88.83	113.98	mm
	ANSI	I	18	20	24	26	30	31	45	48	53	mm
		d1	21.54	26.87	33.65	42.42	48.56	60.63	73.38	89.31	114.76	mm
		d2	21.23	26.57	33.27	42.04	48.11	60.17	72.85	88.7	114.07	mm
	DIN	I	18	20	24	26	30	31	45	48	53	mm
		d1	20.3	25.3	32.3	40.3	50.3	63.3	75.3	90.3	110.4	mm
		d2	20	25	32	40	50	63	75	90	110	mm
	d		15	19	24	30	34	45	55	70	85	mm
	H		37	55	66	73	81	91	99	121	134	mm
	A		68	80	94	100	110	136	170	210	236	mm
	L		77	91	103	111	123	146	178	210	255	mm
	D		32	37.5	44	52	60	74	93	110	135	mm
