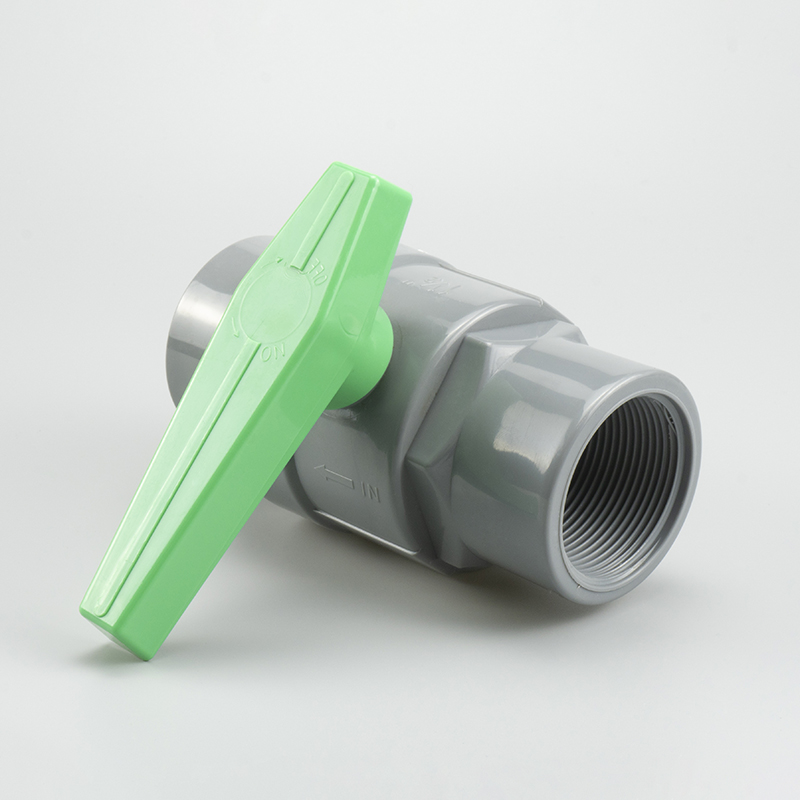

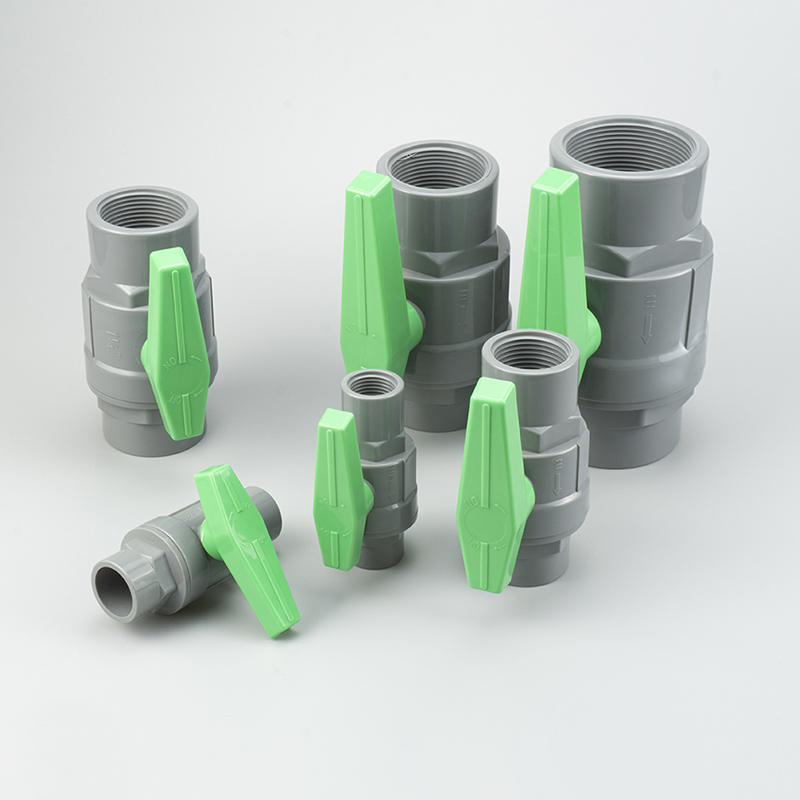

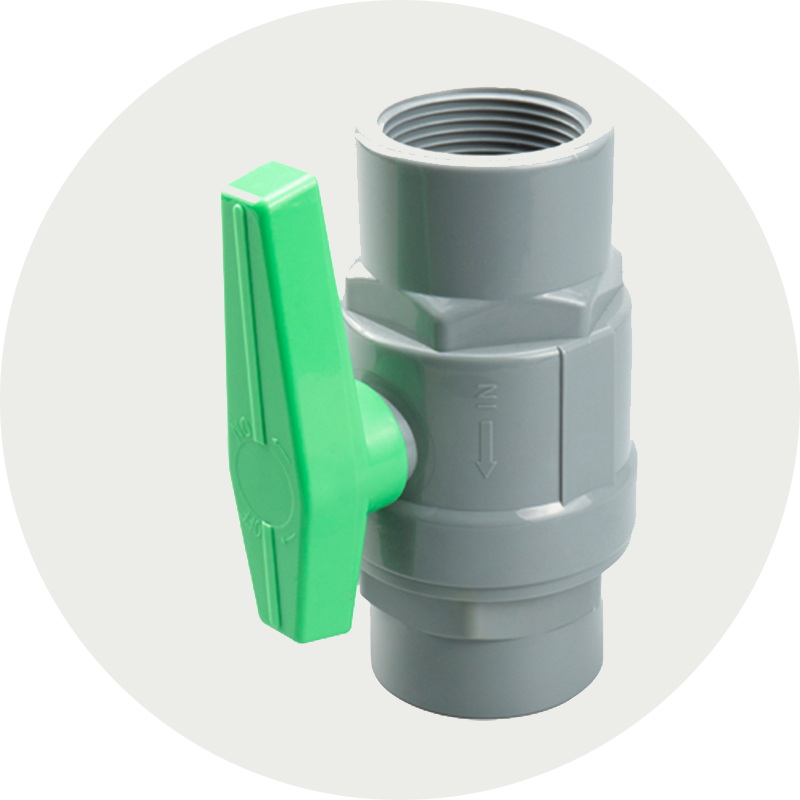

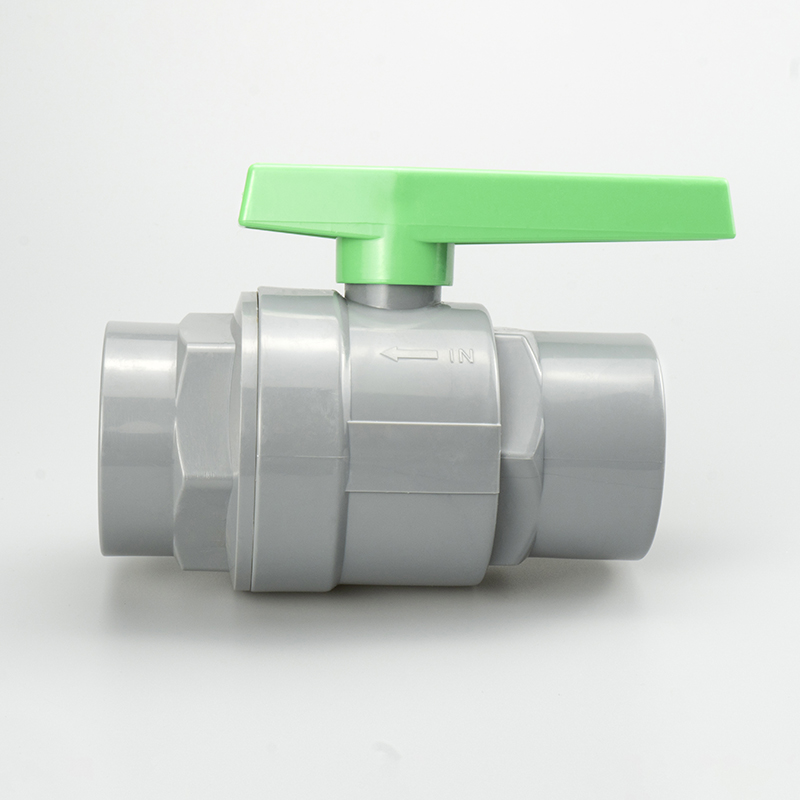

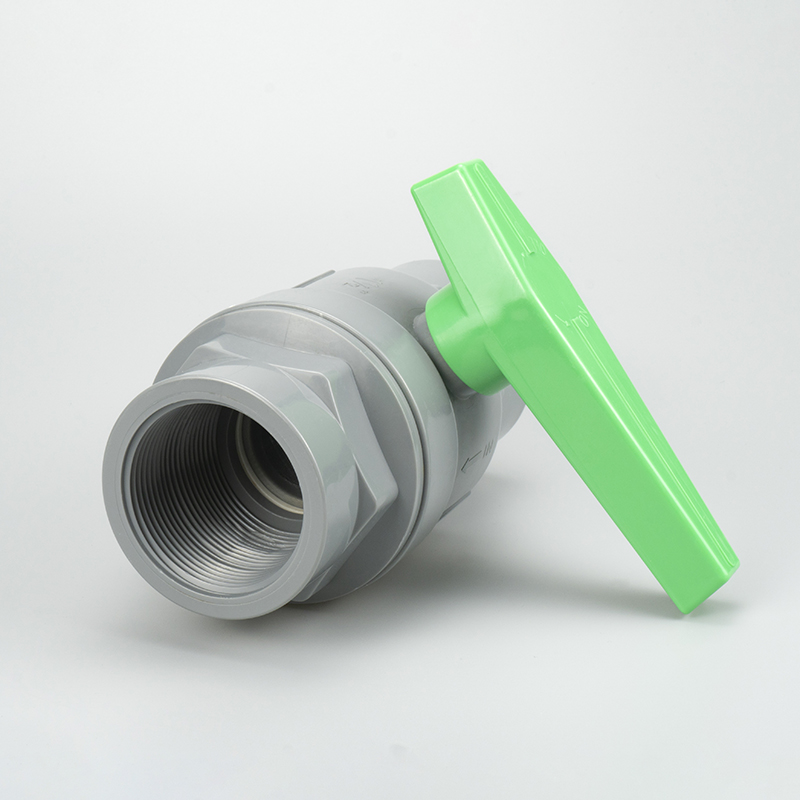

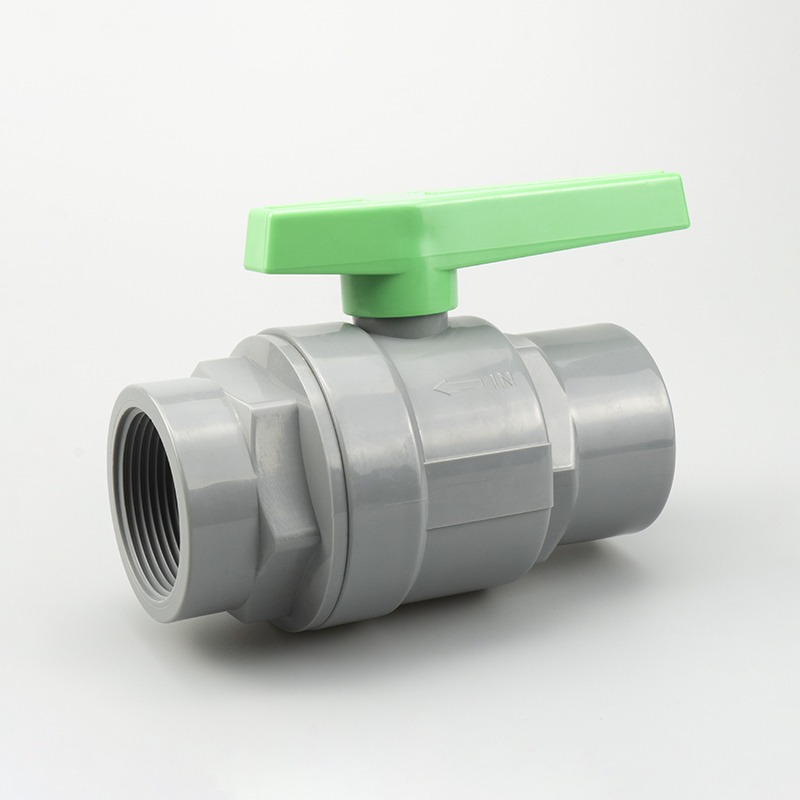

Isonga ryiza rya PVC Umupira Wumuringoti Ibikoresho Byibice bibiri Umupira Valve hamwe nicyatsi kibisi Icyatsi cya plastiki Icyuma kitagira ibyuma 3M Valve

Isonga ryiza rya PVC Umupira Wibikoresho Byibikoresho Byibice bibiri Umupira Valve hamwe nicyatsi kibisi cya plastiki Icyuma kitagira ibyuma 3M Valve Ikiranga Ishusho
  • Isonga ryiza rya PVC Umupira Wumuringoti Ibikoresho Byibice bibiri Umupira Valve hamwe nicyatsi kibisi Icyatsi cya plastiki Icyuma kitagira ibyuma 3M Valve
  • Isonga ryiza rya PVC Umupira Wumuringoti Ibikoresho Byibice bibiri Umupira Valve hamwe nicyatsi kibisi Icyatsi cya plastiki Icyuma kitagira ibyuma 3M Valve
  • Isonga ryiza rya PVC Umupira Wumuringoti Ibikoresho Byibice bibiri Umupira Valve hamwe nicyatsi kibisi Icyatsi cya plastiki Icyuma kitagira ibyuma 3M Valve
  • Isonga ryiza rya PVC Umupira Wumuringoti Ibikoresho Byibice bibiri Umupira Valve hamwe nicyatsi kibisi Icyatsi cya plastiki Icyuma kitagira ibyuma 3M Valve
  • Isonga ryiza rya PVC Umupira Wumuringoti Ibikoresho Byibice bibiri Umupira Valve hamwe nicyatsi kibisi Icyatsi cya plastiki Icyuma kitagira ibyuma 3M Valve
  • Isonga ryiza rya PVC Umupira Wumuringoti Ibikoresho Byibice bibiri Umupira Valve hamwe nicyatsi kibisi Icyatsi cya plastiki Icyuma kitagira ibyuma 3M Valve

Ibisobanuro bigufi:


  • Ingano:1/2 "- 4"
  • Iherezo:Sock (ANSI / DIN / JIS / BS)
    Urudodo (NPT / BSPT)
  • Umuvuduko w'akazi:1/2 "- 2" PN16 = 232PSI
    2-1 / 2 "- 4" PN10 = 150PSI

    • Ibicuruzwa birambuye

    Ibibazo

    Ibicuruzwa

    Ibikoresho

    Ibisobanuro by'ibikoresho

    OYA. Igice Ibikoresho QTY
    1 UMUBIRI UPVC 1
    2 STEM O-Impeta EPDM, FPM (NBR) 1
    3 INTAMBWE POM 1
    4 UMUPIRA ABS GUKORA CHROM 1
    5 Ikidodo TPE, TPVC, TPO 2
    6 UKUBOKO PVC / ABS 1



    Imbonerahamwe yubunini bwikigereranyo

    DIMENSION Igice
    MODEL DN 15 20 25 32 40 50 65 80 100
    SIZE 1/2 " 3/4 " 1" 1-1 / 4 " 1-1 / 2 " 2" 2-1 / 2 " 3" 4" Inch
    thd./in NPT 14 14 11.5 11.5 11.5 11.5 8 8 8 mm
    BSPT 14 14 11 11 11 11 11 11 11 mm
    JIS I 20 20 24 26 30 31 45 48 53 mm
    d1 22.3 26.3 32.33 38.43 48.46 60.56 76.6 89.6 114.7 mm
    d2 21.7 25.7 31.67 37.57 47.54 59.44 75.87 88.83 113.98 mm
    ANSI I 18 20 24 26 30 31 45 48 53 mm
    d1 21.54 26.87 33.65 42.42 48.56 60.63 73.38 89.31 114.76 mm
    d2 21.23 26.57 33.27 42.04 48.11 60.17 72.85 88.7 114.07 mm
    DIN I 18 20 24 26 30 31 45 48 53 mm
    d1 20.3 25.3 32.3 40.3 50.3 63.3 75.3 90.3 110.4 mm
    d2 20 25 32 40 50 63 75 90 110 mm
    d 15 19 24 30 34 45 55 70 85 mm
    H 37 55 66 73 81 91 99 121 134 mm
    A 68 80 94 100 110 136 170 210 236 mm
    L 77 91 103 111 123 146 178 210 255 mm
    D 32 37.5 44 52 60 74 93 110 135 mm
